Complete Blood Pressure Systems
Discover blood pressure (BP) research solutions from iWorx Systems for invasive and non-invasive monitoring, featuring advanced analysis of systolic, diastolic, and mean arterial pressure in cardiovascular studies.
All systems include both LabScribe software and the Blood Pressure Analysis module.
Fluid-Filled System
(RS-IBP4)- LabScribe Software
- Blood Pressure Analysis
- Up to 8-Channels of BP
- Mice
- Rats and Larger
- Optional ECG, EMG
- No Flushing Required
- High Frequency Response
- Cardiac
Solid-State System
(RS-IBPSCx)- LabScribe Software
- Blood Pressure Analysis
- Up to 8-Channels of BP
- Mice
- Rats and Larger
- Optional ECG, EMG
- No Flushing Required
- High Frequency Response
- Cardiac
Fiber-Optic System
(RS-IBPFOx)- LabScribe Software
- Blood Pressure Analysis
- Up to 8-Channels of BP
- Mice
- Rats and Larger
- Optional ECG, EMG
- No Flushing Required
- High Frequency Response
- Cardiac
Expandable System
(RS-IBPF0x-RA)- LabScribe Software
- Blood Pressure Analysis
- Up to 8-Channels of BP
- Mice
- Rat and Larger
- Optional ECG, EMG
- No Flushing Required
- High Frequency Response
- Cardiac

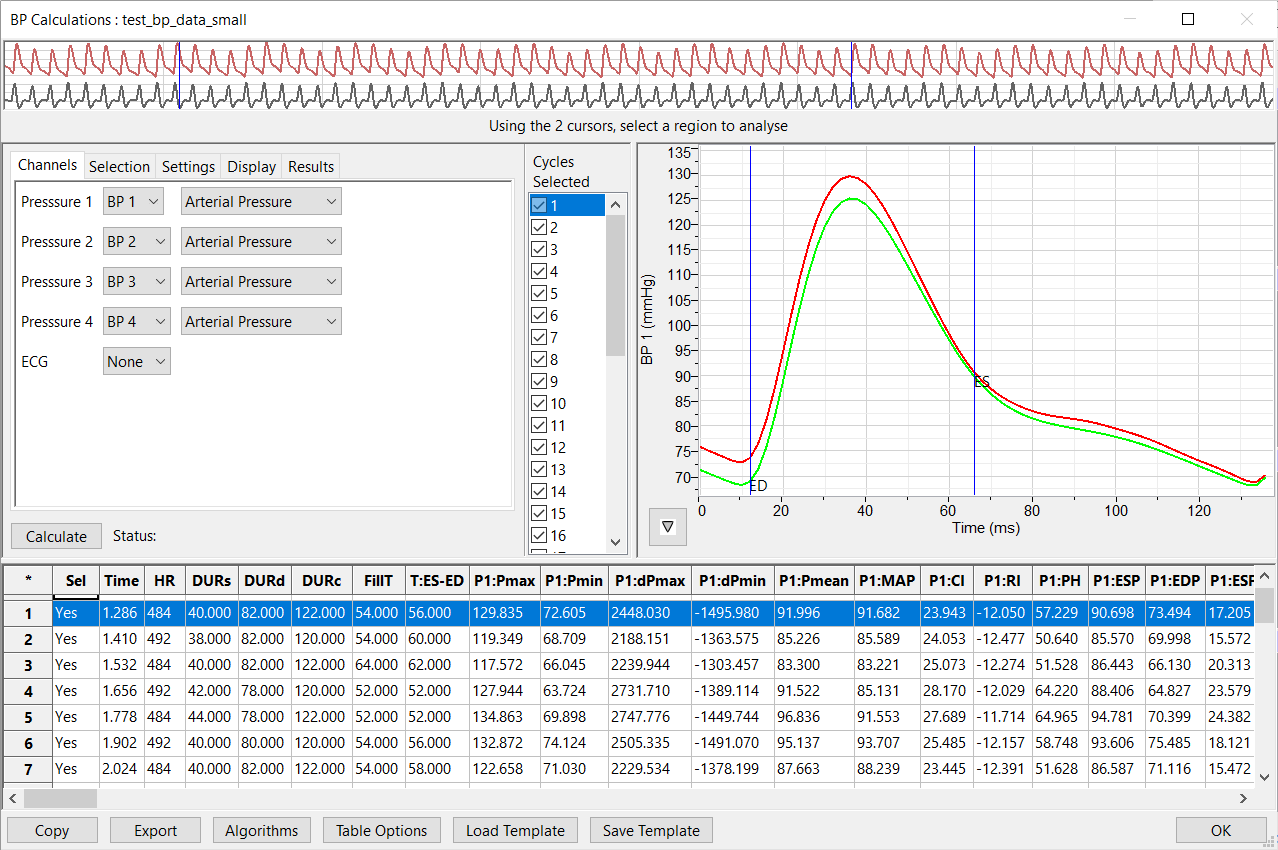

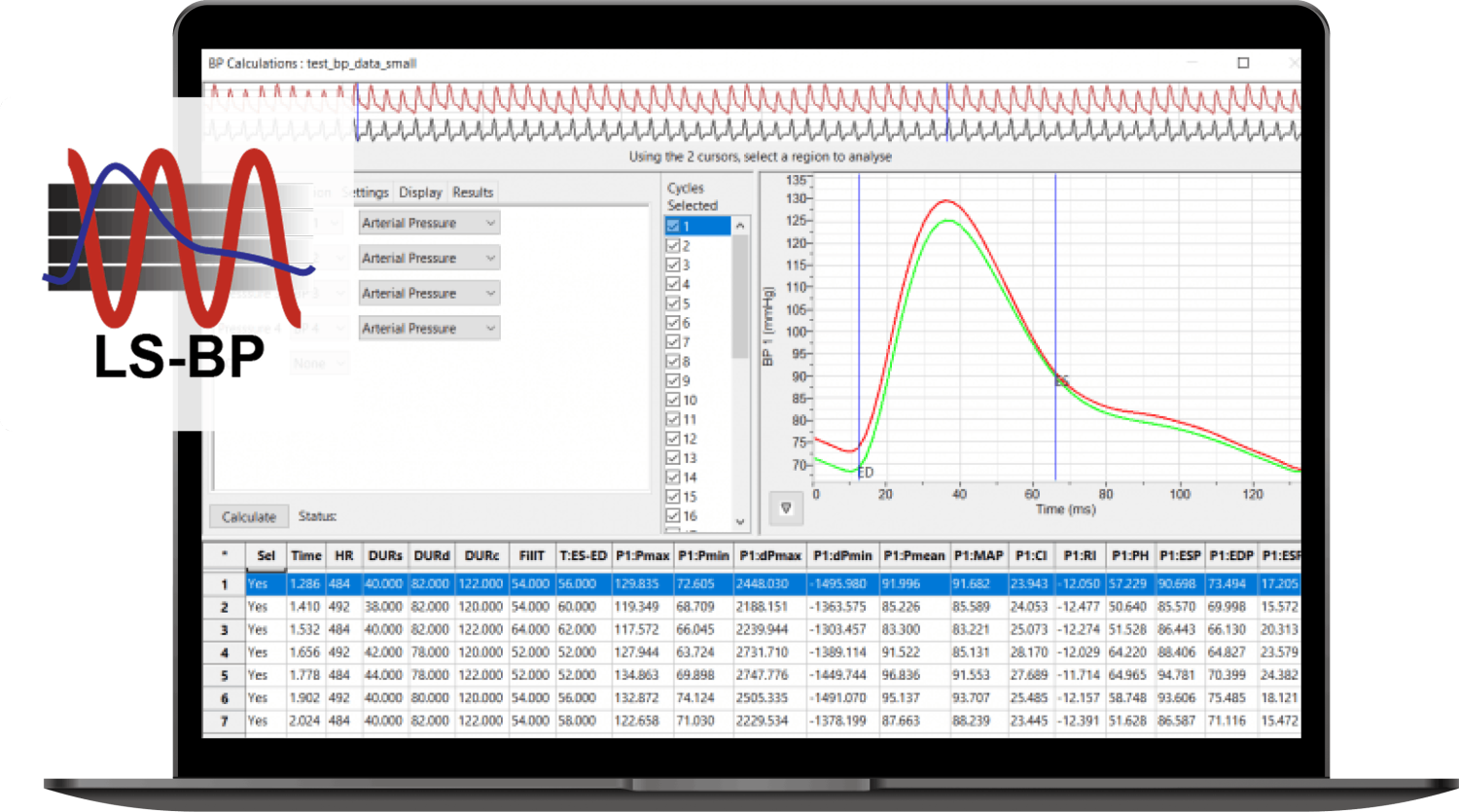

LabScribe Blood Pressure Analysis Module
Measurements

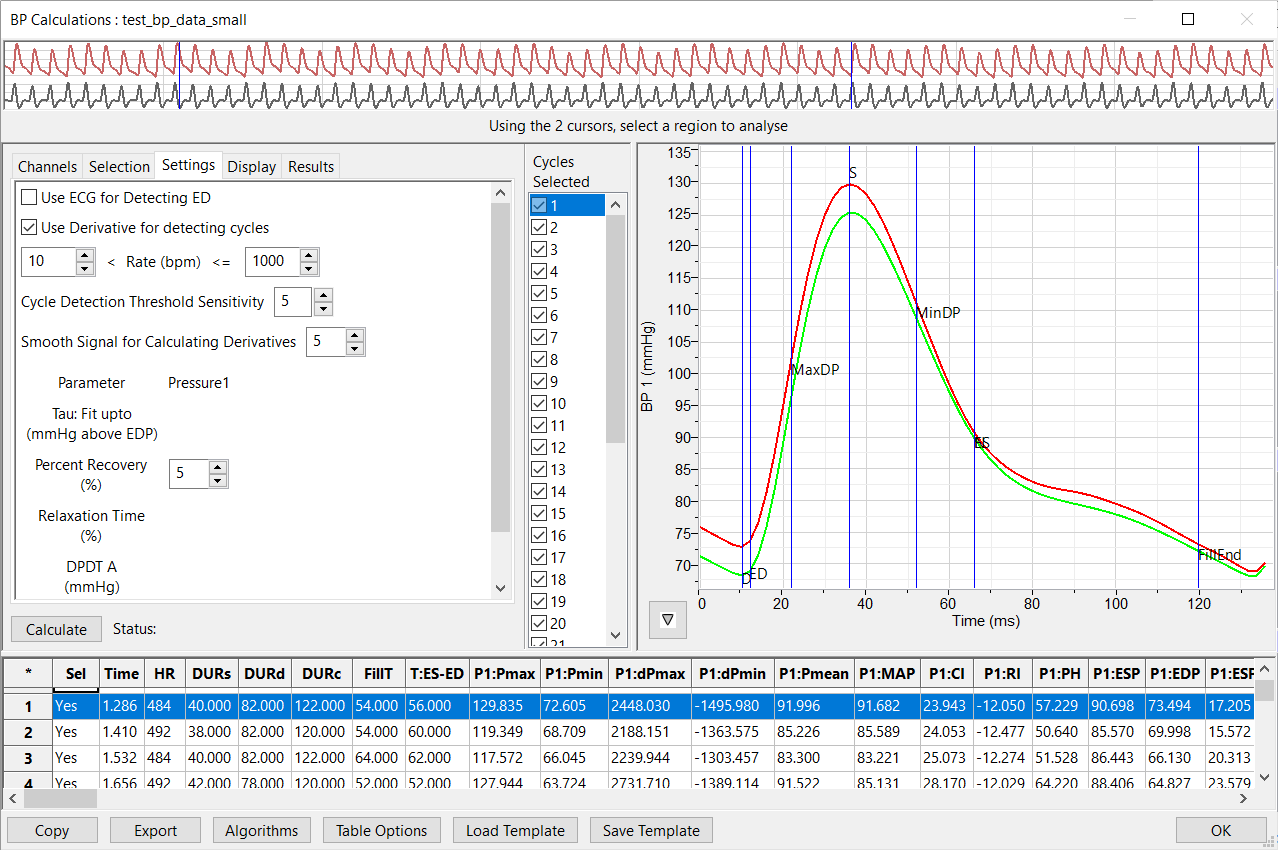

LabScribe Features for BP Analysis
- Filter the data to reduce noise
- Create HR, Systolic, Diastolic, Mean Pressure channels
- Analyze a selection or complete file
- Use ECG channel for detecting ED if available
- Smooth signal to calculate derivatives
- Dedicated measurements for arterial and ventricular pressures

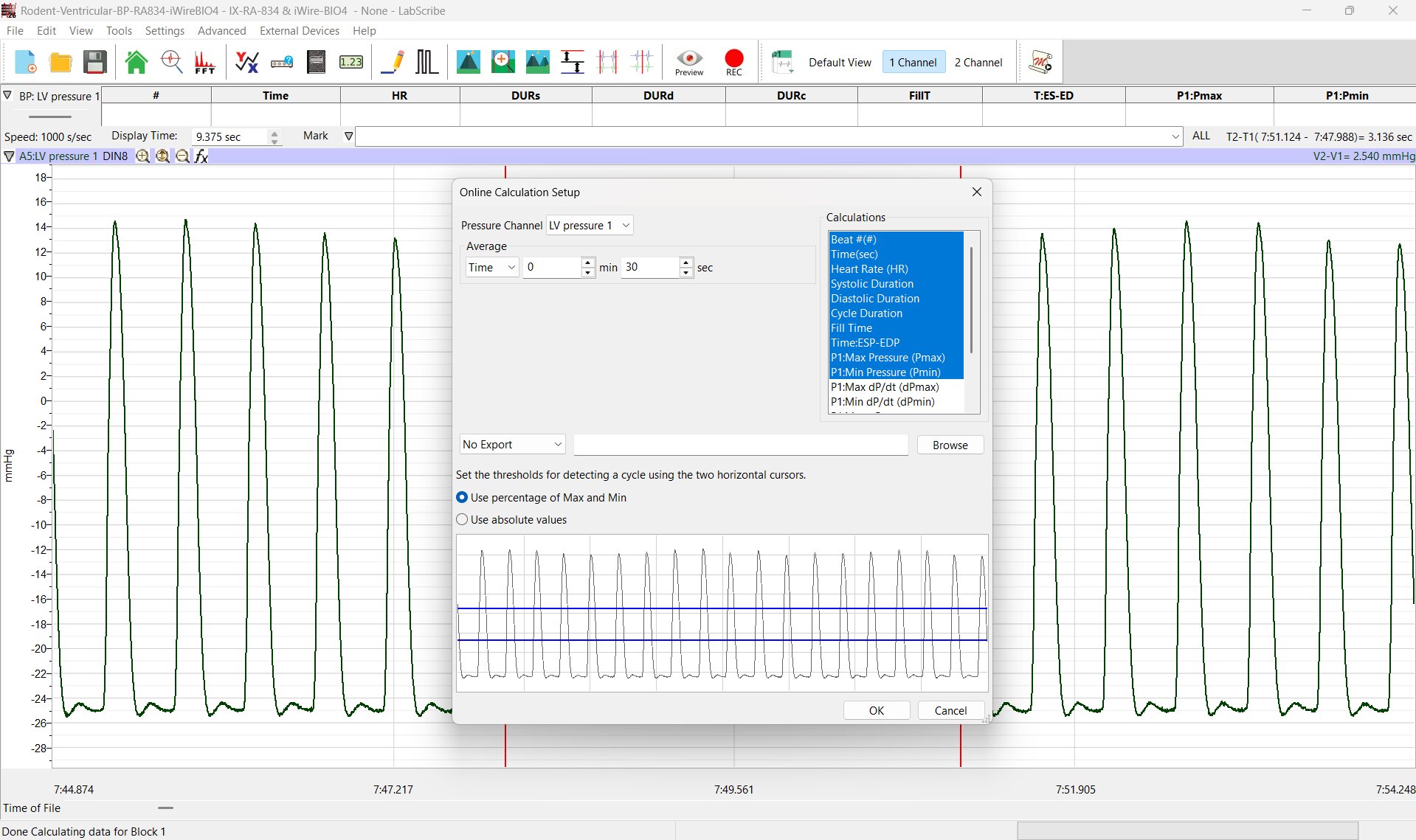

Online Calculations
Calculate the online parameters for up to 8 pressure channels, such as: Heart Rate (HR), Systolic Duration, Diastolic Duration, Cycle Duration, Fill Time, Time:ESP-EDP, Max Pressure, Min Pressure, Max dP/dt, Min dP/dt, Mean Pressure, MAP, Contractility Index, Relaxation Index, Pulse Height
Offline Calculations
Heart Rate (HR), Maximum Pressure (Pmax), Minimum Pressure (Pmin), Mean Arterial Pressure (MAP), Systolic and diastolic pressure, Maximum dP/dt (dP/dtmax), Minimum dP/dt (dP/dtmin), Pulse Height, Notch Pressure, Systolic Duration, Diastolic Duration, Cycle Duration, Time To Peak, Election Time, Percent Recovery, Mean Pressure (Pmean), End-systolic Pressure (Pes), End-diastolic Pressure (Ped), Maximum dP/dt (dP/dtmax), Minimum dP/dt (dP/dtmin), Developed Pressure, dP/dt@ User Set Pressure, Contractility Index, Relaxation Index, Systolic Duration, Diastolic Duration, Cycle Duration, Tension Time Index, Relaxation Time, Isovolumetric Time, Tau (Weiss, Logistic, Glantz, Mirsky)
Manual
The Complete LabScribe manual can be found by navigating to the LabScribe toolbar and selecting “Help” > “Help (Manual)”
Analysis Module
Solid-State Catheters
Fluid-Filled Catheters
Tutorial Videos
Systems
RS-IBP4: Fluid-Filled 4-Channel Invasive BP SystemThis fluid-filled system is designed for measuring invasive blood pressure in small and large animals.
- RS-IBPSCx: Solid-State Catheter Invasive BP System
This solid-state invasive blood pressure system is designed for measuring invasive blood pressure in small and large animals.
- RS-IBPFOx: Fiber-Optic Catheter Invasive BP System
This fiber-optic invasive BP system is designed for measuring pressures in animals from mice and other rodents to larger animals.
- RS-IBPFOx-RA: Expandable Fiber-Optic Catheter BP System
This fiber-optic invasive BP system is designed for measuring pressures in animals from mice and other rodents to larger animals.
Contact Us
iWorx Tech Support
Have questions or want to schedule a demonstration of our products? Schedule a time to meet with one of our dedicated Research and Teaching Technical Specialists are ready to support your educational and research goals. We provide personalized, one-on-one assistance and web training to ensure you get the most from your system.
One of our team members will get back to you directly.
LabScribe Features for Blood Pressure Analysis
- Preset and Customizable Filters
- Online Calculations up to 8 Channels
- Create HR, Systolic, Diastolic, Mean Pressure Channels
- Analyze Selections or Complete File
- Use ECG Channel for Detecting End Diastolic Volume (EDV)
- Smooth signal to calculate derivatives
- Dedicated measurements for arterial and ventricular pressures
Arterial Pressure Calculations:
- Heart Rate (HR)
- Maximum Pressure (Pmax)
- Minimum Pressure (Pmin)
- Mean Arterial Pressure (MAP)
- Systolic and diastolic pressure
- Maximum dP/dt (dP/dtmax)
- Minimum dP/dt (dP/dtmin)
- Pulse Height
- Notch Pressure
- Systolic Duration
- Diastolic Duration
- Cycle Duration
- Time To Peak
- Election Time
- Percent Recovery
Ventricular Pressure Calculations
- Heart Rate (HR)
- Maximum Pressure (Pmax)
- Minimum Pressure (Pmin)
- Mean Pressure (Pmean)
- End-systolic Pressure (Pes)
- End-diastolic Pressure (Ped)
- Maximum dP/dt (dP/dtmax)
- Minimum dP/dt (dP/dtmin)
- Developed Pressure
- dP/dt@ User Set Pressure
- Contractility Index
- Relaxation Index
- Systolic Duration
- Diastolic Duration
- Cycle Duration
- Tension Time Index
- Relaxation Time
- Isovolumetric Time
- Tau (Weiss, Logistic, Glantz, Mirsky)
