ROAM Wireless ECG & Respiration

The iWorx ROAM Wireless ECG is a wearable system designed to provide long-term recording and unrestricted movement.

Clear
SKU IXR-ROAM-ECG Category Tag

The iWorx ROAM Wireless ECG is a wearable system designed to provide long-term recording and unrestricted movement. The recording device easily attaches to the subject with standard electrodes. The protective case doubles as a charging station. The system works with both Windows and MacOS via standard USB interface. Data can be quickly analyzed with the included LabScribe analysis software or exported directly for other processing. The ROAM Wireless ECG allows for hours of continuous recording with an untethered reach of 20 feet.

Features

  • 8+ Hours of Continuous Recording
  • Plug and Play Technology
  • No Syncing Required
  • PC and Mac compatible
  • USB-Powered
  • EMG, Respiration and Accelerometer measurements available
  • Includes LabScribe Software for Data collection and Analysis

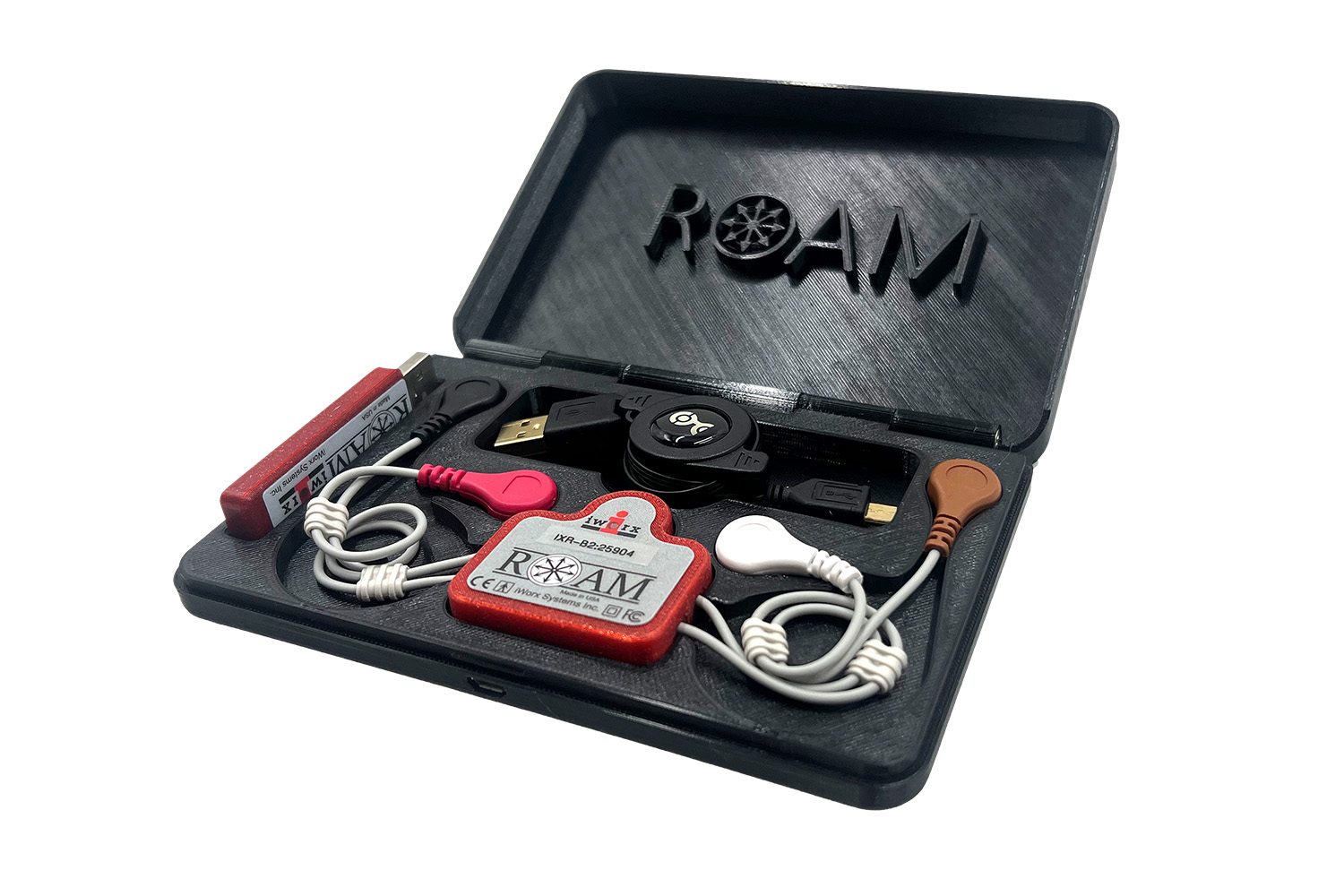

System Includes

  • ROAM wireless EMG/ECG Recorder
  • ROAM wireless USB receiver
  • LabScribe Recording and Analysis Software
  • Retractable USB cable
  • Hard-Shell case for Charging and Storage

Roam Wireless User Manual

Specifications
Input ChannelsECG
Respiration
X,Y,Z acceleration ( IXR-ECGA only)
Sampling Speed5k samples per sec. aggregate
Resolution< 6 µV
Weight16.8g
Dimensions44.2mm x 42.7mm
Battery capacity110 mAhr
Battery life> 8hrs
Rangeup to 20ft
ElectrodesA-ELEC-E-30 :Exercise Electrodes for ECG/EMG/Respiration, Offset Electrode  35x53mm

Optional

LabScribe ECG Analysis Module

iWorx LabScribe ECG Software Module is a powerful and user-friendly tool intended to automate the analysis of ECG data from a variety of species.

Features:
  • Measure R-R, PR, QT, QR and QTc intervals, QRS, T, P and TP durations, P, Q, R, S, T amplitudes and ST elevation, etc…
  • Specific analysis templates are included to accurately delineate PQRST onset, durations and amplitudes
  • Custom templates can also be created based on unique ECG profiles and saved to a library for future use
  • Beat averaging and classification
  • Outlier removal based on abnormal R-R intervals, heart rate, noise and activity
  • Easily extract source data and average data as images or text files
  • Plug and play compatible with all iWorx data acquisition

More Information…

ECG Analysis Video
