iWire ROAM Wireless

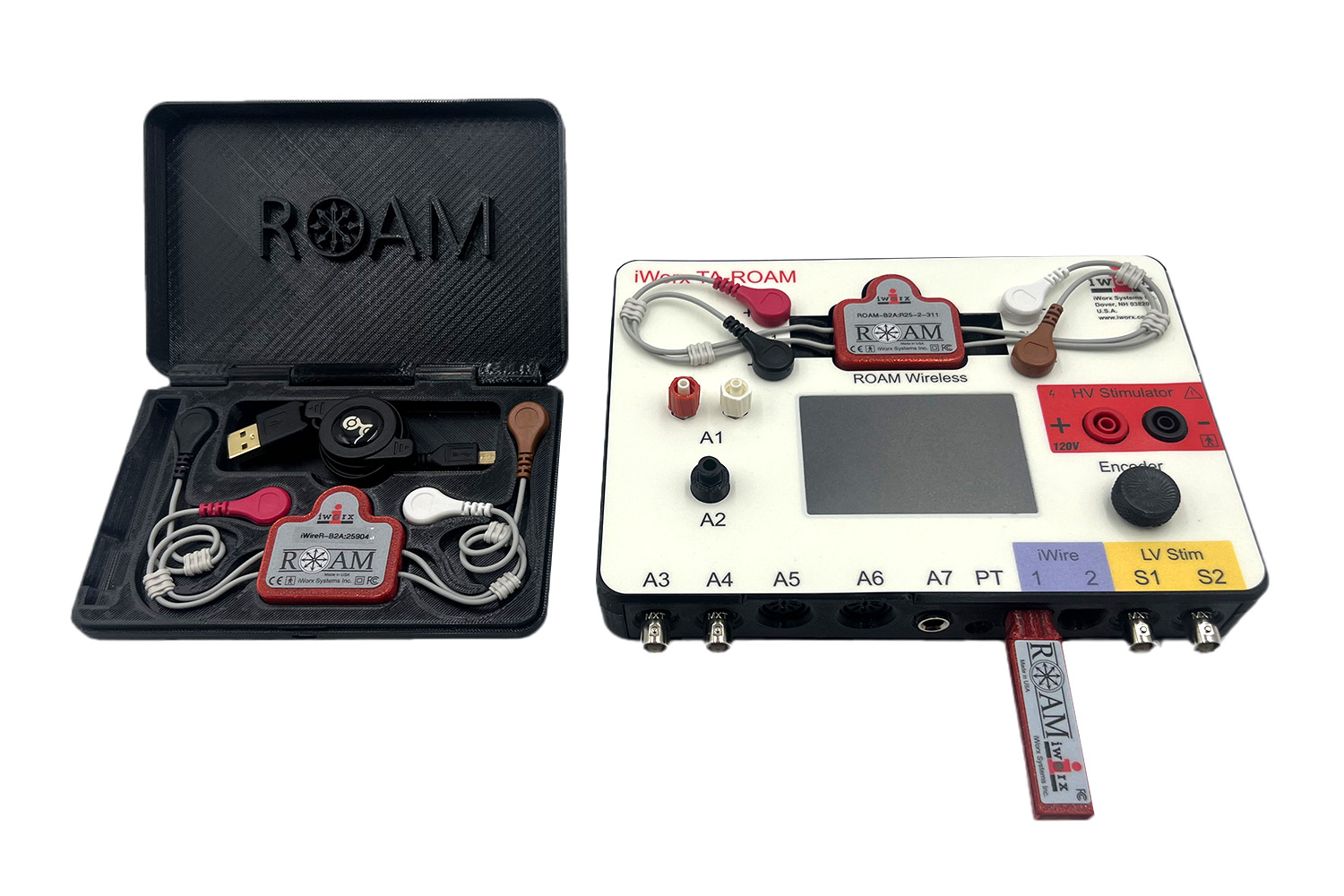

Expand your iWorx TA  or RA system with wireless recordings.

The iWorx ROAM is a versatile, wireless system designed to provide long-term recording and unrestricted movement.  The ROAM wireless allows for hours of continuous recording with an untethered reach of 20 feet.

$1,063.00$1,955.00

Clear

Add wireless capabilities to your laboratory recording system.

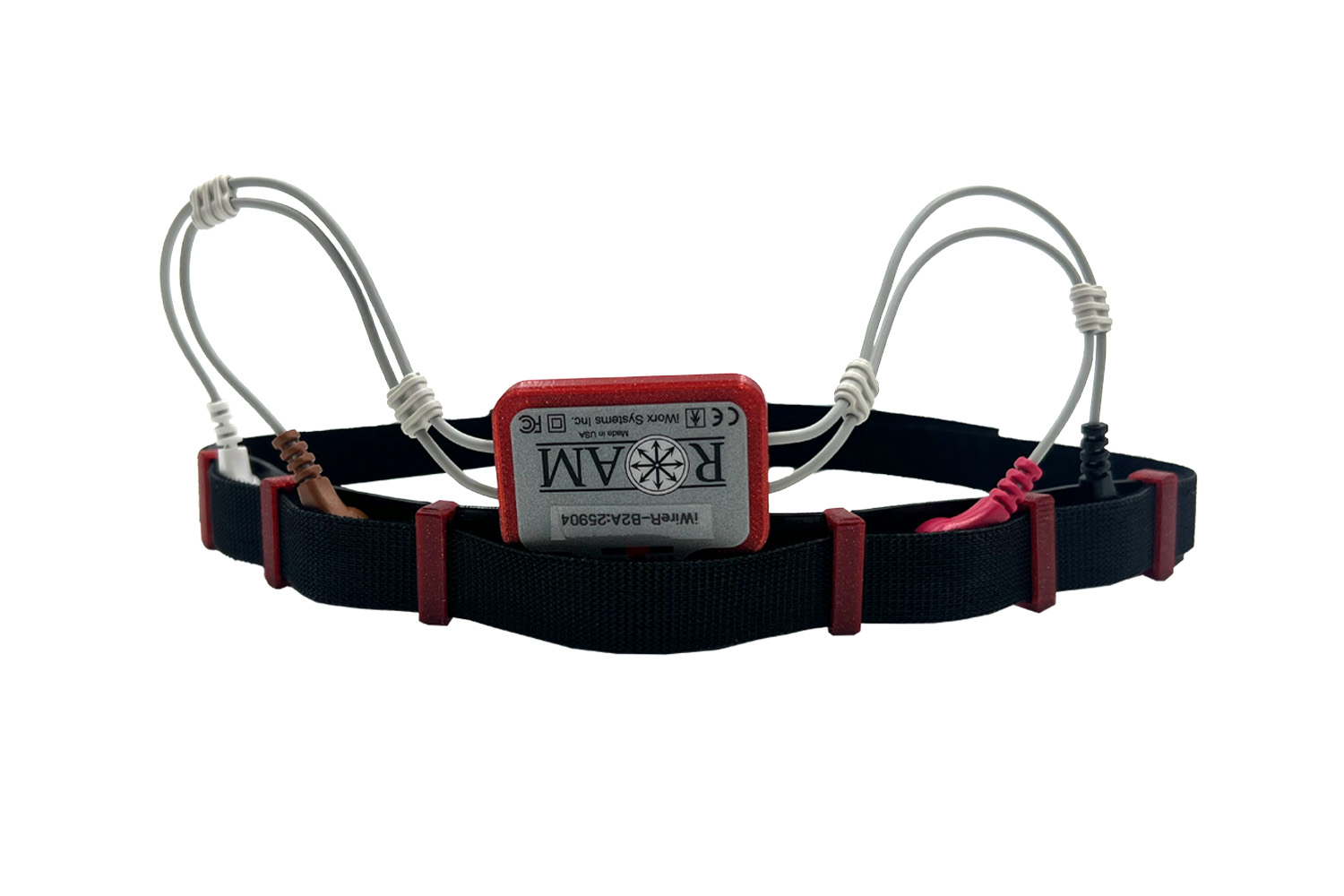

The iWire-ROAM wireless is a versatile, wireless system designed to provide long-term recording and unrestricted movement. The recording device easily attaches to the subject’s chest with standard electrodes. The protective case doubles as a charging station. The system works with iWorx Recorders with an iWire interface. Data can be quickly analyzed with Labscribe analysis software or exported directly for other processing. The ROAM wireless system allows for hours of continuous recording with an untethered reach of 20 feet.

Features:

  • 8+ Hours of Continuous Recording
  • Plug and Play iWire Technology
  • No Syncing Required
  • USB-Powered
  • 3-axis Accelerometer available

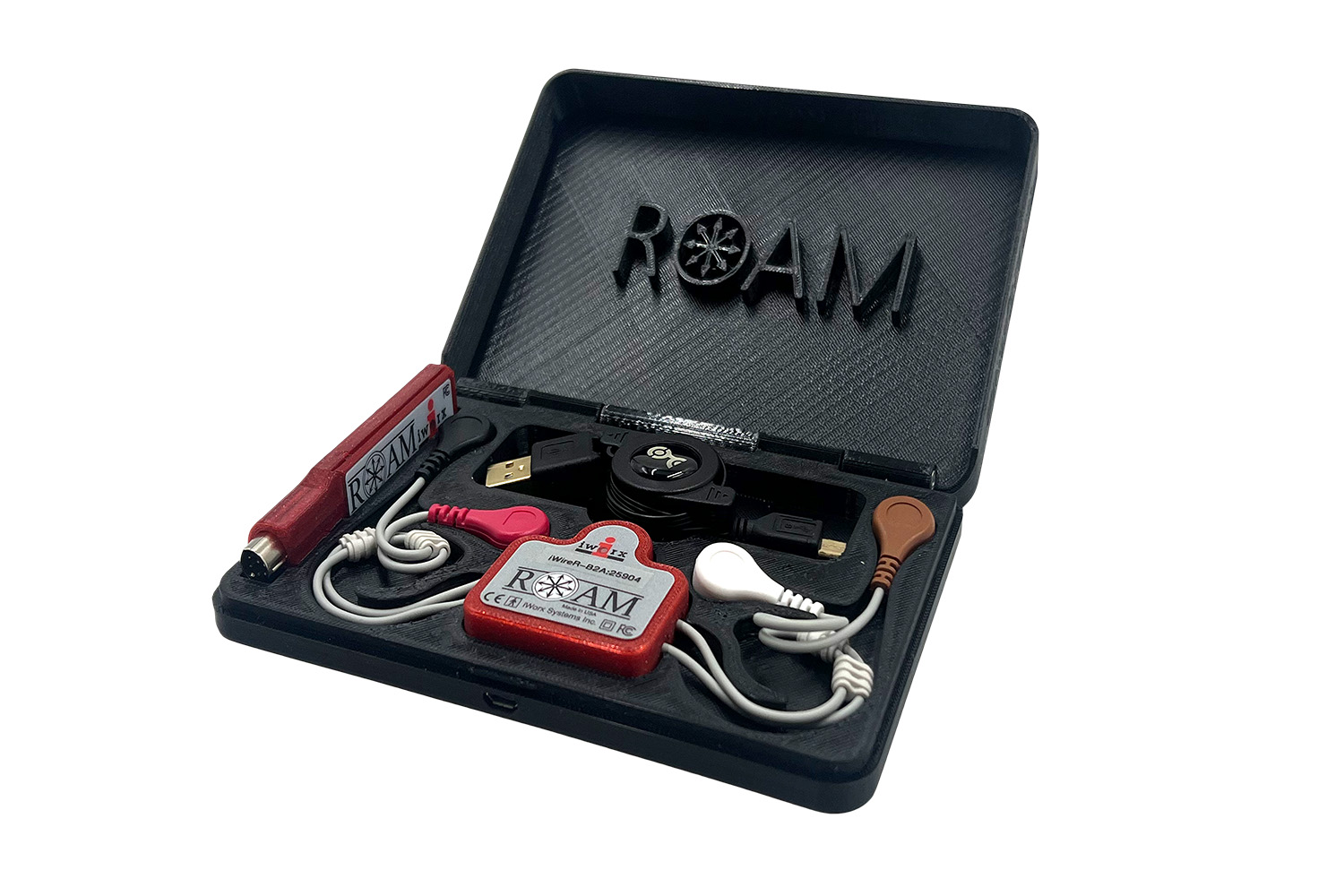

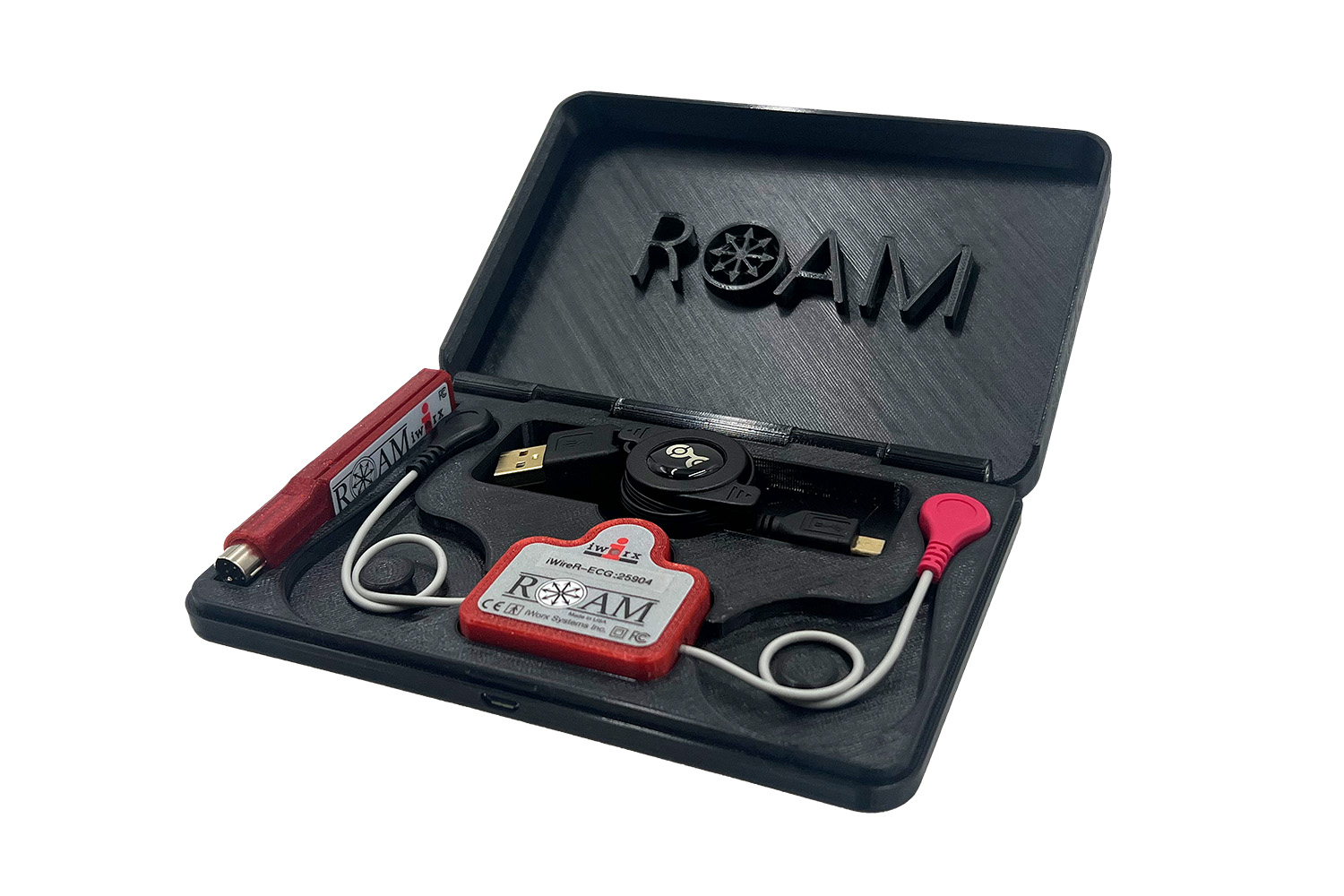

System Includes

  • ROAM wireless ECG/EMG/EEG Recorder
  • ROAM wireless iWire receiver
  • Hard-Shell case for Charging and Storage
  • Retractable USB cable for charging

Lab Exercises



Specifications

Input Channels IWIRER-ECG: ECG & Respiration
IWIRER-B1: 1 ECG/EMG/EEG Channel
IWIRER-B2: 2 ECG/EMG/EEG Channels
Accelerometer X,y, Z acceleration available
Sampling Speed 5k samples per sec.
Resolution < 6 µV
Aggregate Weight 16.8g
Dimensions 44.2mm x 42.7mm
Battery capacity 110 mAhr
Battery life > 8hrs
Range upto 20ft
Electrodes A-ELEC-E-30:Exercise Electrodes for ECG/EMG/Respiration, Offset Electrode 35x53mm

 EMG Measurement & Analysis




 ECG Measurement & Analysis

  • Analysing ECG’s recorded in LabScribe with Kubios HRV
  • ECG Analysis Module Available
    • Measure R-R, PR, QT, QR and QTc intervals, QRS, T, P and TP durations, P, Q, R, S, T amplitudes and ST elevation, etc…
    • Beat averaging and classification
    • Outlier removal based on abnormal R-R intervals, heart rate, noise and activity
