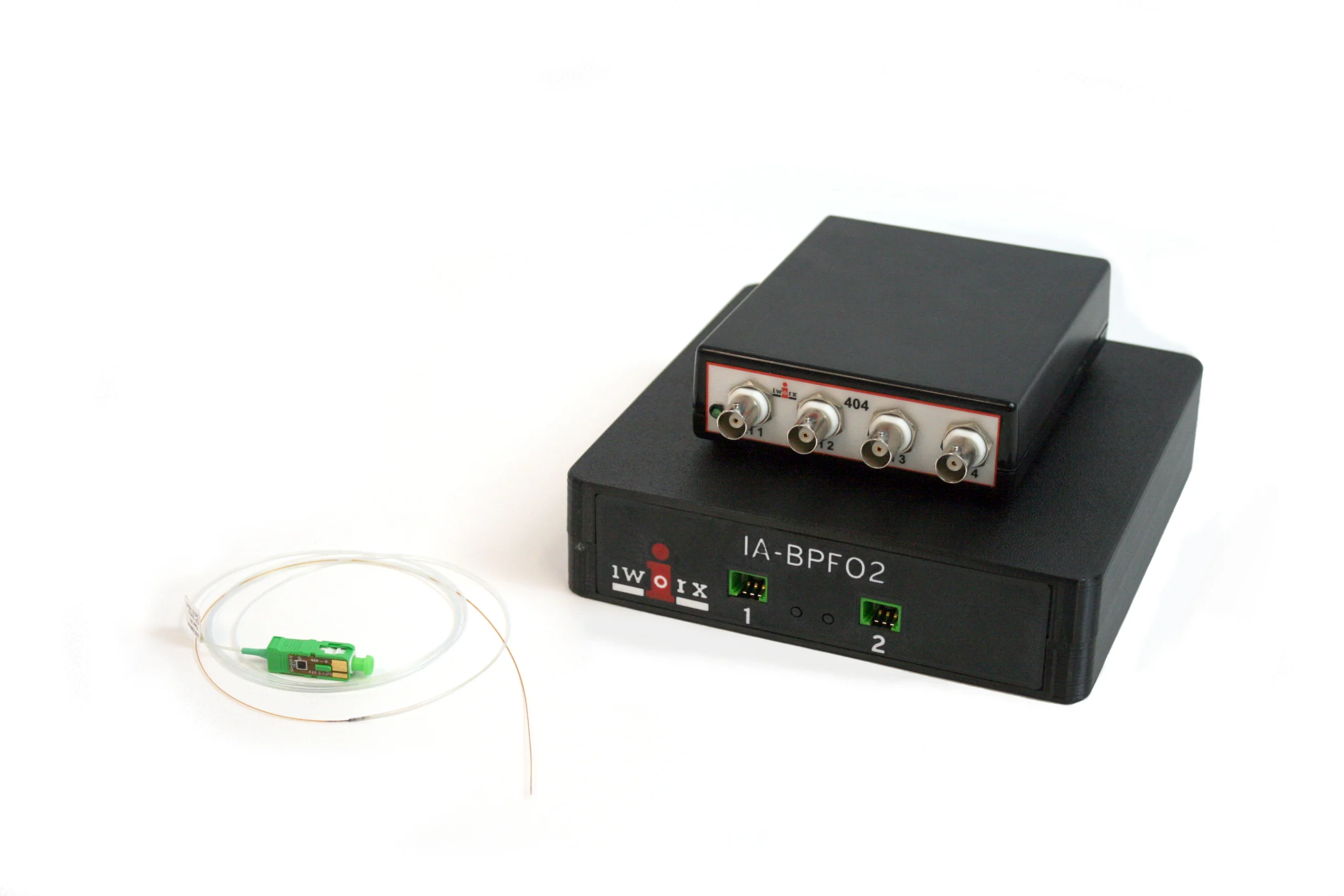

RS-IBPFOx Fiber Optic Catheter, BP System

iWorx Fiber Optic Invasive BP system is designed for measuring pressures in animals from mice and other rodents to larger animals.

SKU RS-IBPFOX Categories , Tags ,

iWorx offers the Opsens Fiber Optic pressure catheters in sizes starting at 1.0F. These catheters are recommended for measuring pressure in small vessels as well as ventricular pressures in small rodents. They are also highly recommended for recording arterial and chamber pressures in large animals. Being fiberoptic, they are suited for MRI applications as well.
Fiber Optic catheters offer superior sensitivity and temporal resolution compared to ?uid-flled catheters and are generally more suitable for measuring intracardiac pressures from animal species with high intrinsic heart rates.

RS-IBPFOx? Systems include:

Available in 1?4 channel confgurations.



Specifications for the Catheter
Catheter Length50 mm
Catheter Diameter304µm OD (1F)
Cable Diameter0.304 mm OD
Cable length2m
Pressure range– 300 mmHg to + 350 mmHg
Precision± 1 mmHg
Resolution0.2 mmHg
Moisture drift (typical)< 3 mmHg/28 days
Thermal coefficient of Zero (typical)0.2 mmHg per °C
Proof pressure4000 mmHg
Operating temperature10 °C to 50 °C
Operating humidity range0-100%
EM/RF/MR/MW susceptibilityComplete immunity
Cable length1.5 meters standard (Other lengths available)
Optical connectorSC standard

Fluid Filled System

RS-IBP4
$
  • LabScribe Software
  • Blood Pressure Analysis
  • Up to 8 Channels of BP
  • Mice
  • Rats and bigger
  • Optional ECG, EMG
  • No Flushing required
  • High Frequency Response

Solid State System

RS-IBPSCx
$$
  • LabScribe Software
  • Blood Pressure Analysis
  • Up to 8 Channels of BP
  • Mice
  • Rats and bigger
  • Optional ECG, EMG
  • No Flushing required
  • High Frequency Response

Fiber Optic System

RS-IBPFOx
$$
  • LabScribe Software
  • Blood Pressure Analysis
  • Up to 8 Channels of BP
  • Mice
  • Rats and bigger
  • Optional ECG, EMG
  • No Flushing required
  • High Frequency Response

Expandable System

RS-IBPF0x-RA
$$$
  • LabScribe Software
  • Blood Pressure Analysis
  • Up to 8 Channels of BP
  • Mice
  • Rat and bigger
  • Optional ECG, EMG
  • No Flushing required
  • High Frequency Response
