IX-BIO4 biopotential recorder with SL7 snap electrodes

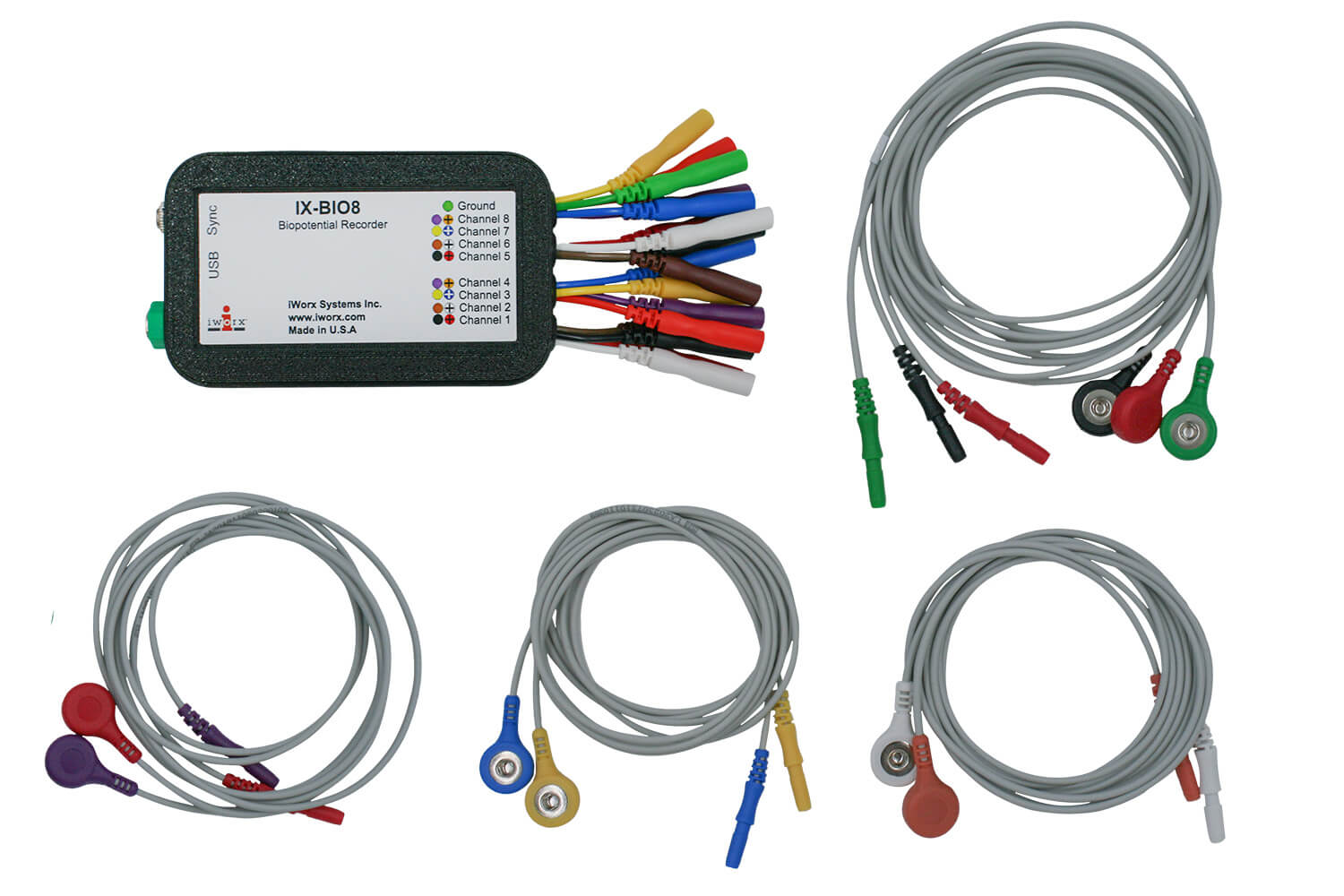

IX-BIO8 biopotential recorder with leads

IX-BIO8 8 Channel biopotential recorder

IX-BIO4 4 channel biopotential recorder

RS-EMG: Human and Large Animal sEMG System

The RS-EMG enables 4-8 channels of EMG recordings.

SKU RS-EMG Categories EMG, System Tags EMG, System

Features

Portable, USB powered
Color coded leads
Easy export
Built in Journal for creating reports
Lab Site license included
Free software updates.
Record multiple channels of EMG, ECG, EOG simultaneously from a single subject.
EMG analysis included.

LabScribe EMG Analysis Module

The iWorx LabScribe EMG Software Module is a robust and intuitive tool designed to effortlessly streamline the analysis of EMG data across a wide range of species.

Measurements

SEMG Measurements
Maximal Voluntary Contraction (MVC)
Muscle Force
Fatigue
Recruitment
Summation
Incomplete Tetanus
Complete Tetanus
H-Reflex

Analysis

Time Domain Analysis

Root Mean Square (RMS)
- Regarded as the most common method for assessing the amplitude of the EMG signal, as it offers a measure of the signal’s power and generates a waveform that is easy to analyze
Maximum Voluntary Contraction (MVC)
- A widely used measure of muscle strength in research. It represents the greatest force a person can voluntarily produce, reflecting their maximum effort
(Average) Rectified EMG Data
- For determining the overall strength of the neural drive to the muscle and is correlated with both the strength of muscle contraction and its output
Threshold
- For the detection of muscle activity timing in EMG signals
Teager-Kaiser
- Measures the amount of energy in an EMG signal
Area Under The Curve
- For determining the compound motor action potential (CMAP) and other measurements
Envelope EMG Data
- A classic method of measuring muscle contraction
Filtering
- User controlled high pass and low pass filters

Frequency Domain Analysis

Power Spectral Density (FFT)
- Breaks down the signal into high and low-frequency spectral components
Mean (MNF) and Median (MDF) Frequency
- The most valuable and commonly used frequency-domain features for assessing muscle fatigue in surface EMG signals
Peak Frequency (PKF)
- Frequency at which the maximum EMG power occurs
Total Power (TTP)
- Total amount of power used over time
Mean Power (MNP)
- The average power of EMG power spectrum
Frequency Ratio (FR)
- Differentiate between contraction and relaxation of muscle and it is defined as the ratio of power spectrum at low-frequency band and high-frequency band

EMG

8 Videos

Maximum Voluntary Contraction (MVC) in LabScribe

1:14

Average Rectified Value (ARV) in LabScribe

1:04

Average Rectified Value (ARV) in LabScribe

1:04

EMG Frequency Ratio in LabScribe

0:55

EMG Threshold Analysis in LabScribe

1:01

Mean, Median, and Peak Frequency in LabScribe

1:12

Teager Kaiser Energy (TKE) in LabScribe

0:59

Total Power and Mean Power in LabScribe

1:14

System Includes

Electrodes

Snap Electrodes
C-ISO-SL7: set of 7 snap electrodes (RS-EMG4)
C-ISO-SL17: set of 17 snap electrodes (RS-EMG8)
Button Electrodes
C-ISO-SB5 button electrodes
EMG Electrodes
50 Disposable EMG Electrodes

Options

Citations

Papers about ECG using iWorx systems on Google Scholar

Papers about EMG using iWorx systems on Google Scholar

Citations for IX-BIO4 and IX-BIO8:

Lienemann, Samuel, et al. “Stretchable gold nanowire-based cuff electrodes for low-voltage peripheral nerve stimulation.” Journal of Neural Engineering 18.4 (2021): 045007.
Sirisha, Allampalli, et al. “Effect of honey and insulin treatment on oxidative stress and nerve conduction in an experimental model of diabetic neuropathy Wistar rats.” PloS one 16.1 (2021): e0245395.
Dehkordi, Parastoo, et al. “Estimation of Cardiac Time Intervals From the Mechanical Activity of the Heart Using Machine Learning.” 2019 Computing in Cardiology (CinC). IEEE, 2019.
Zhu, Canzhan, et al. “Phloroglucinol averts isoprenaline hydrochloride induced myocardial infarction in rats.” Drug development research (2019).
Gottschall, Jinger S., Bryce Hastings, and Zachary Becker. “Muscle Activity Patterns Do Not Differ Between Push-Up and Bench Press Exercises.” Journal of applied biomechanics(2018): 1-20.
Craighead, Daniel H., et al. “Ingestion of TRP channel agonists attenuates exercise‐induced muscle cramps.” Muscle & Nerve (2017).
Looney, David P., et al. “Electromyographical and Perceptual Responses to Different Resistance Intensities in a Squat Protocol: Does Performing Sets to Failure With Light Loads Produce the Same Activity?.” The Journal of Strength & Conditioning Research
30.3 (2016): 792-799.
Flanagan, Shawn D., et al. “Concurrent Validity of the Armour39 Heart Rate Monitor Strap.” The Journal of Strength &
Conditioning Research 28.3 (2014): 870-873.
Earp, Jacob E., et al. “Regional Surface Electromyography of the Vastus Lateralis During Strength and Power Exercises.” The Journal of Strength & Conditioning Research 30.6 (2016): 1585-1591.
Kh Dehkordi, Parastoo, et al. “Comparison of Different Methods for Estimating Cardiac Timings: A Comprehensive Multimodal Echocardiography Investigation.” Frontiers in physiology 10 (2019): 1057.

IX-BIO Specifications

Analog Inputs	4 Biopotential ( IX-BIO4) 8 Biopotential ( IX-BIO8)
Input Range	2400mV, 1200mV, 800mV, 400mV, 200mV, 100mV, 50mV, 25mV, 12mV
A/D Converter
Sampling Speed	20k Samples/sec per channel simultaneous
Resolution	16 Bit
System noise	< 6 µV
Interface	USB
General
Enclosure	Plastic
Power	USB
Warranty and Upgrades	Protected by a 3 year warranty

EMG in Dentistry

In dentistry, uses of EMG is more common in temporomandibular joint (TMJ) disorder, TMJ dysfunction, dystonia, orthodontics, implants, occlusion or bite correction, cranial nerve lesion, and assessing muscles of the head and neck at rest and in function.

Surface EMG can be used to study bioelectrical phenomena of muscular contraction. Surface EMG allows the examination of some important muscles involved in chewing, swallowing, and posture of the head (typically masseter, temporalis anterior and posterior, digastric anterior, sternocleidomastoid).
