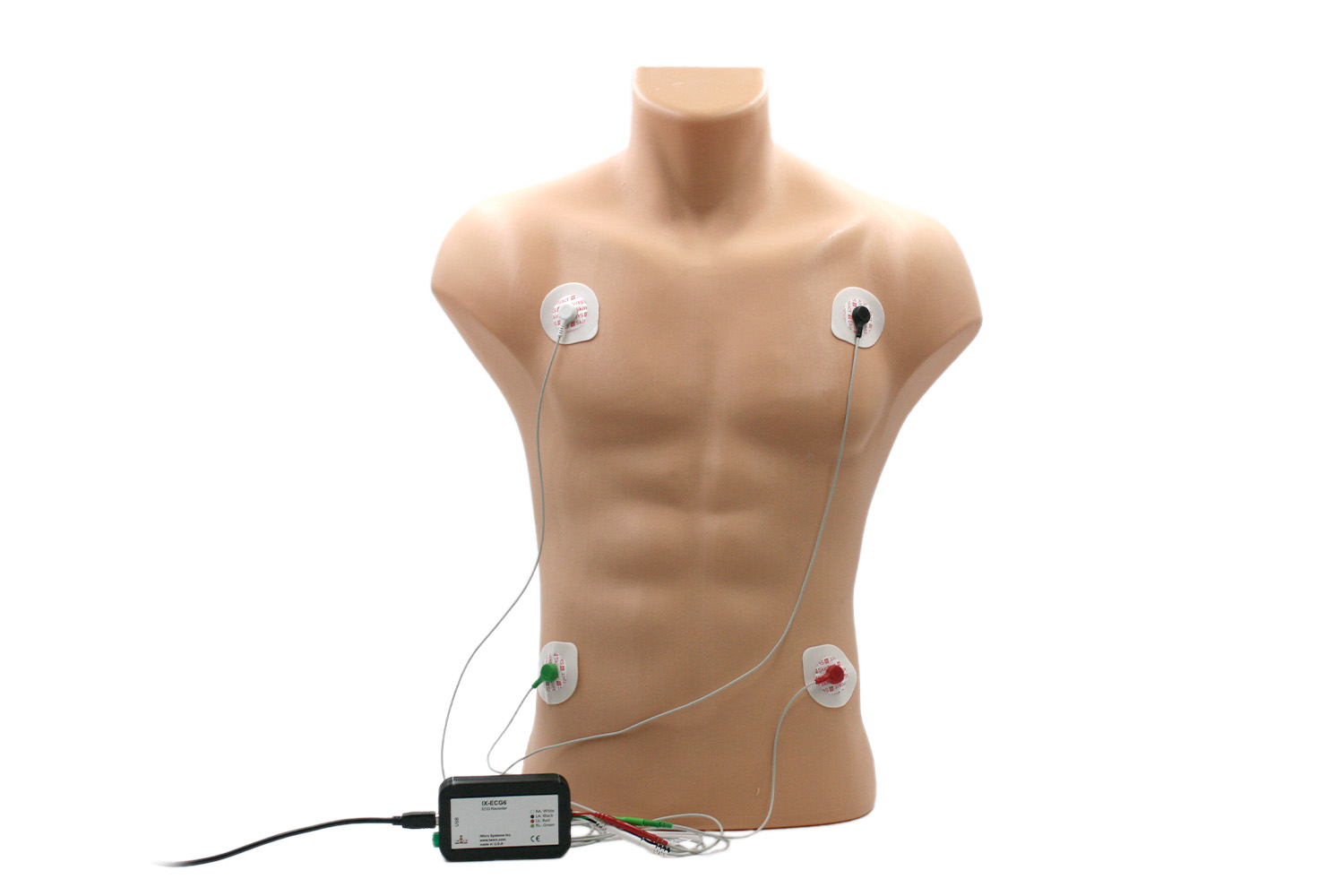

The iWorx 6 lead ECG recorder enables accurate and reliable ECG measurement and analysis of humans or animals. Measuring 6 ECG leads LeadI, Lead II, Lead III, aVr, aVl and aVf simultaneously, this compact and lightweight PC-based ECG recorder enables highly detailed analysis of the anterior, lateral and inferior regions of the heart.
The RS-ECG6 system is optimized for measuring large animal ECG.

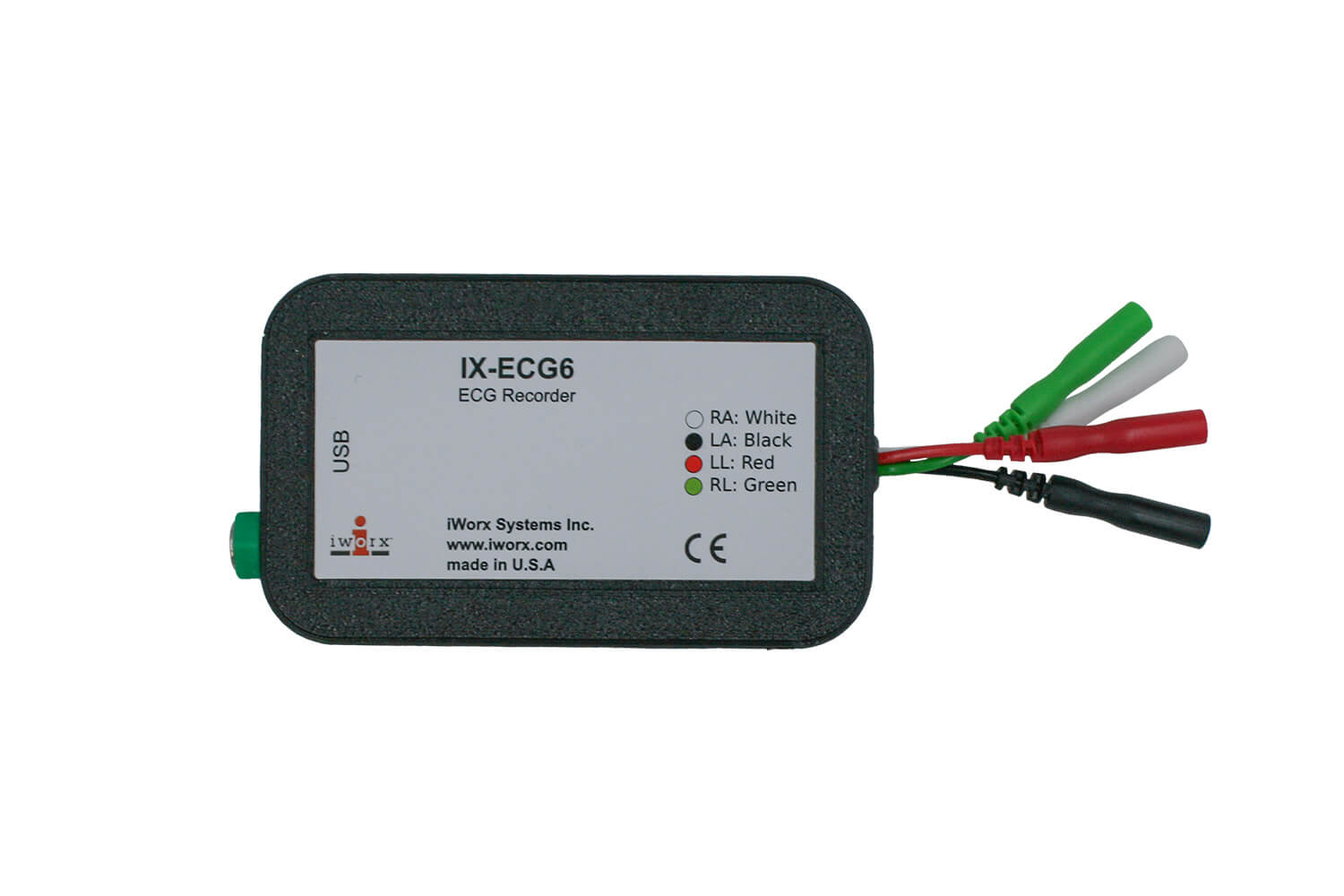

The IX-ECG6 connects to and is powered by a USB port on any Windows or Macintosh computer. Data is recorded and analyzed with iWorx advanced LabScribe ECG Software Module.
Record 6 ECG leads Lead I, Lead II, Lead III, aVr, aVl, aVf, simultaneously from a single subject.
LabScribe Data acquisition and analysis software
LabScribe Data acquisition and analysis software with the advanced ECG analysis module.

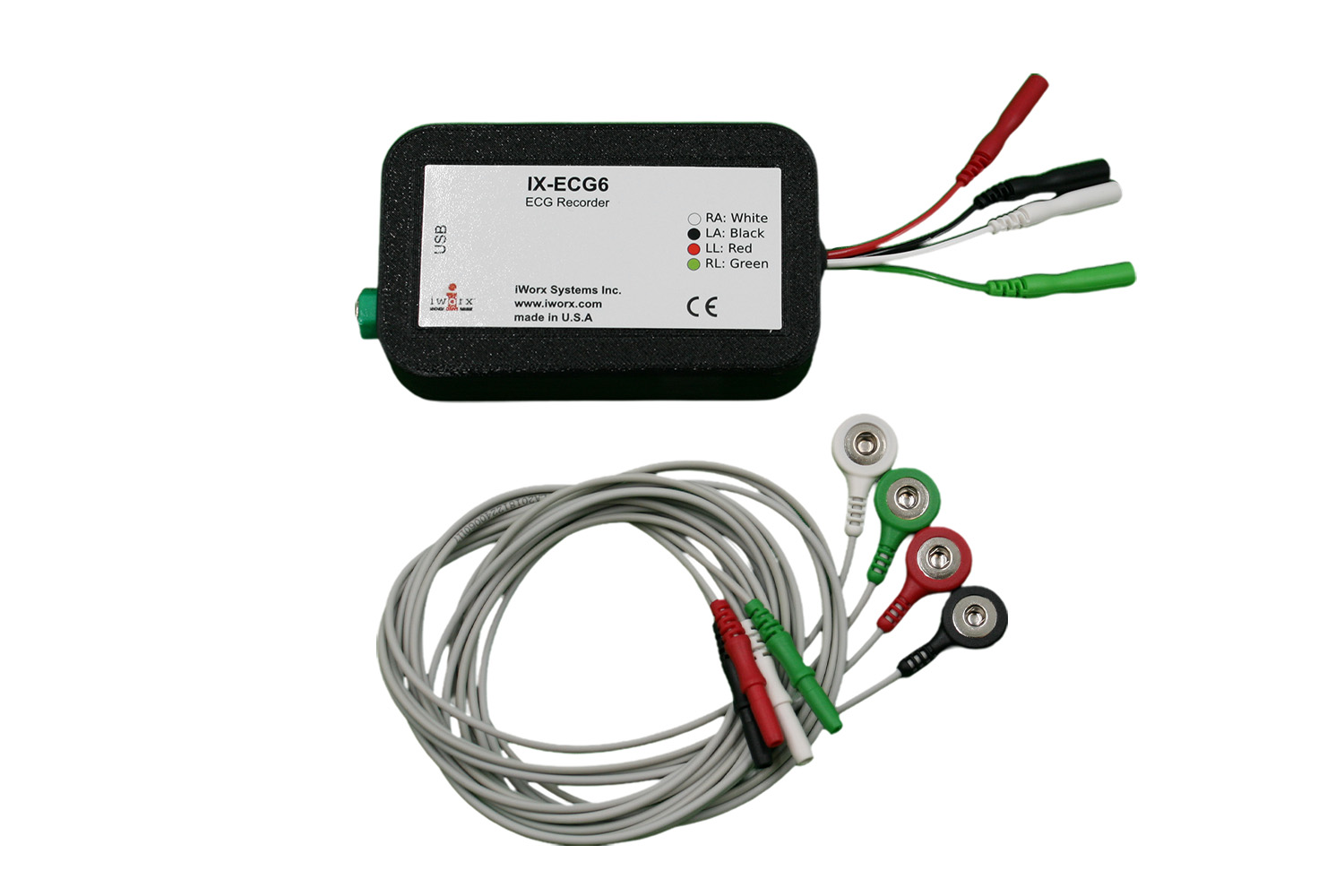

C-ISO-SL4: set of 4 snap lead electrodes
Use FIR and Notch filters to filer out the noise from the ECG signal before processing.
Multiple cycles can also be average further reducing the noise. Average by specified number of beats, or specified time interval.
The following locations are displayed on the ECG waveform:
Outlier removal based on abnormal R-R intervals, heart rate, noise, activity, P amplitude, and T amplitude.
Manually mark outliers if needed. A list of outliers is displayed
| Specifications | |
| Analog Inputs | 4 Limb Electrodes: RA,LA,RL,LL |
| Input Range | 2400mV, 1200mV, 800mV, 400mV, 200mV, 100mV, 50mV, 25mV, 12mV |
| A/D Converter | |
| Sampling Speed | 20k Samples/sec per channel simultaneous |
| Resolution | 16 Bit |
| System noise | < 6 microVolts |
| Interface | USB |
| General | |
| Enclosure | Plastic |
| Power | USB |
| Warranty and Upgrades | Protected by a 3 year warranty |
Papers about ECG using iWorx systems on Google Scholar
Citations for IX-ECG6:
Sweat, Mason E., et al. “Tbx5 maintains atrial identity in postnatal cardiomyocytes by regulating an atrial-specific enhancer network.” Nature cardiovascular research 2.10 (2023): 881-898.
Nagai, Michiaki, et al. “Neuromodulation of Cardiovascular Risks Associated With Cardiotoxic Chemotherapy: A First-in-Human Randomized Pilot Study. Neuromodulation in Cancer Study (NCAN).” American Journal of Clinical Oncology (2024): 10-1097.
The iWorx LabScribe ECG Analysis Module is an add-on to LabScribe software intended to automate the analysis of ECG data from a variety of species.
Features:
