The RS-ECG-SA system is optimized for accurate and reliable ECG measurement and analysis of mouse, rat and other small animals.
The RS-ECG-SA system is optimized for measuring mouse, rat and other small animal ECG.

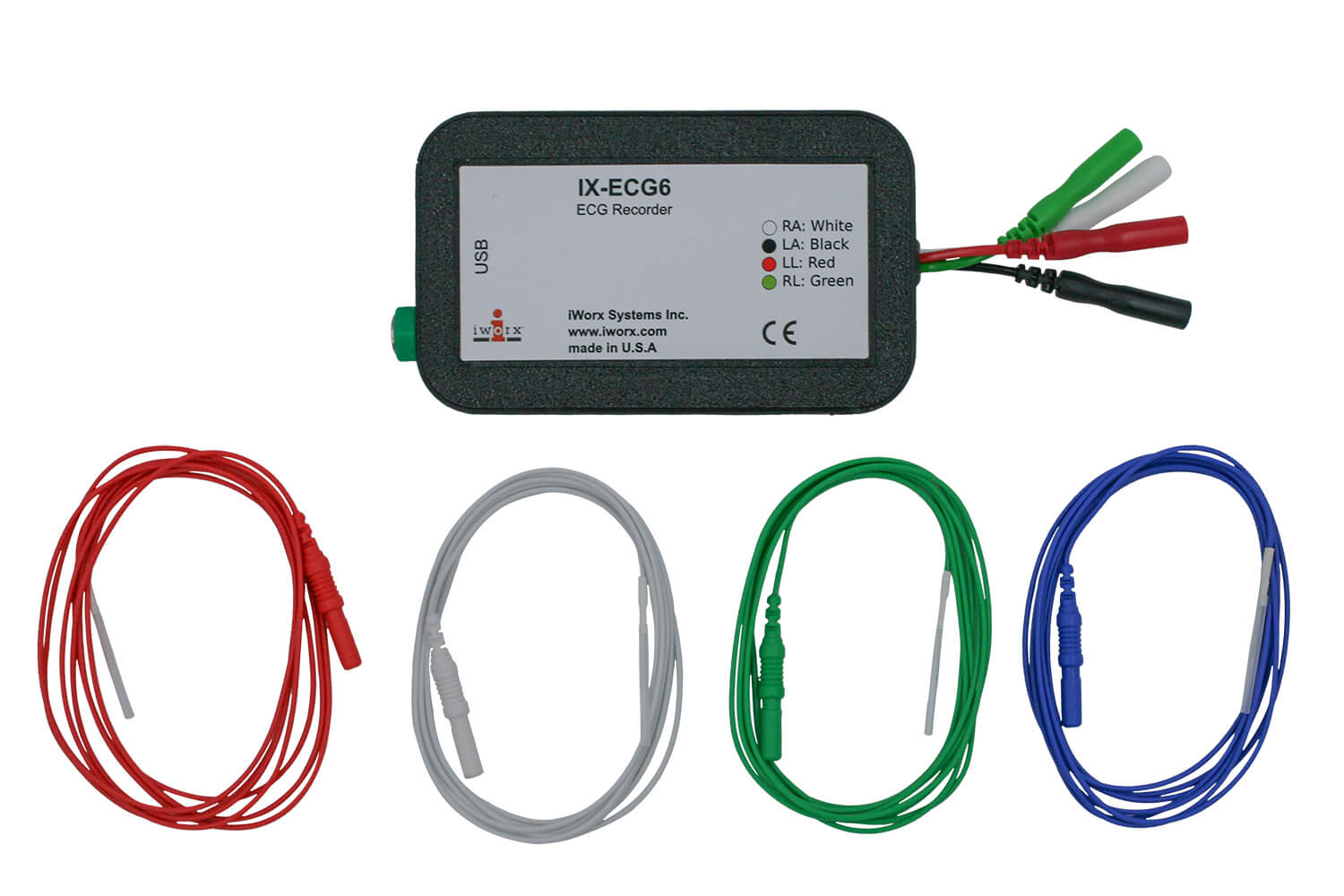

The iWorx 6 lead ECG recorder enables accurate and reliable ECG analysis of resting and exercising humans or animals. Measuring 6 ECG leads simultaneously, this compact and lightweight ECG recorder connects to and is powered by a USB port on any Windows or Macintosh computer. Data is recorded and analyzed with iWorx advanced LabScribe ECG Software Module.
Record 6 ECG leads Lead I, Lead II, Lead III, aVr, aVl, and aVf, simultaneously from a single subject.
LabScribe Data acquisition and analysis software
LabScribe Data acquisition and analysis software with the advanced ECG analysis module.
C-ISO-PN4: set of 4 platinum needle electrodes
Use FIR and Notch filters to filer out the noise from the ECG signal before processing.
Multiple cycles can also be average further reducing the noise. Average by specified number of beats, or specified time interval.
The following locations are displayed on the ECG waveform:
Outlier removal based on abnormal R-R intervals, heart rate, noise, activity, P amplitude, and T amplitude.
Manually mark outliers if needed. A list of outliers is displayed
| Specifications | |
| Analog Inputs | 4 Electrodes: RA,LA,RL,LL |
| Input Range | 2400mV, 1200mV, 800mV, 400mV, 200mV, 100mV, 50mV, 25mV, 12mV |
| A/D Converter | |
| Sampling Speed | 20k Samples/sec per channel simultaneous |
| Resolution | 16 Bit |
| System noise | < 6 microVolts |
| Interface | USB |
| General | |
| Enclosure | Plastic |
| Power | USB |
| Warranty and Upgrades | Protected by a 3 year warranty |
765
ECG and EMG papers on
Google Scholar cite iWorx.
Papers about ECG using iWorx systems on Google Scholar
Sample of Citations for the IX-ECG6:
Sweat, Mason E., et al. “Tbx5 maintains atrial identity in postnatal cardiomyocytes by regulating an atrial-specific enhancer network.” Nature cardiovascular research 2.10 (2023): 881-898.
Nagai, Michiaki, et al. “Neuromodulation of Cardiovascular Risks Associated With Cardiotoxic Chemotherapy: A First-in-Human Randomized Pilot Study. Neuromodulation in Cancer Study (NCAN).” American Journal of Clinical Oncology (2024): 10-1097.
The iWorx LabScribe ECG Analysis Module is an add-on to LabScribe software intended to automate the analysis of ECG data from a variety of species.
