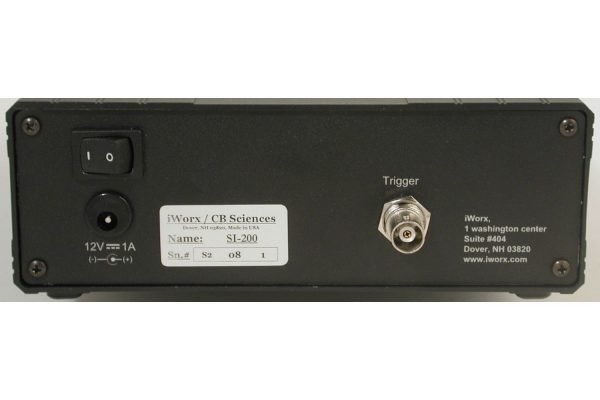

SI-200 Stimulus Isolator

The SI-200 is a high voltage, isolated stimulator designed to deliver safe, transcutaneous stimulus pulses to a nerve or a muscle being studied.


Manual: SI-200

SKU SI-200 Category

The design of the SI-200 permits the desired current of the stimulus pulse to be generated despite the impedance on the path that the current follows. The SI-200 adjusts the voltage needed to maintain that current automatically by increasing the voltage that drives the current up to a maximum of 150 volts.? Because of this capability, the SI-200 is categorized as a constant current stimulator. However, the current output of the SI-200 is limited to a maximum of 20 milliamperes, with a maximum duration of 10 milliseconds and a maximum frequency of 5000Hz.

Output Current 0-20 mA
Compliance Voltage 100V
Isolation Rated to 5300V RMS
Power 9-15VAC/VDC 1000mA
Trigger Input: External TTL signal
Frequency Range Externally Driven 0.1-50 Hz
Pulse Width Minimum 100 µS
Pulse Width Maximum 100 mS
Coupling Capacitance 62pF
