Pulse Oximeter for Small Animal Testing. Requires either an A-PO2-AWS Wrap Sensor, A-PO2-ALC Lingual Clip Sensor or an A-PO2-ATR Transflectance Senor.

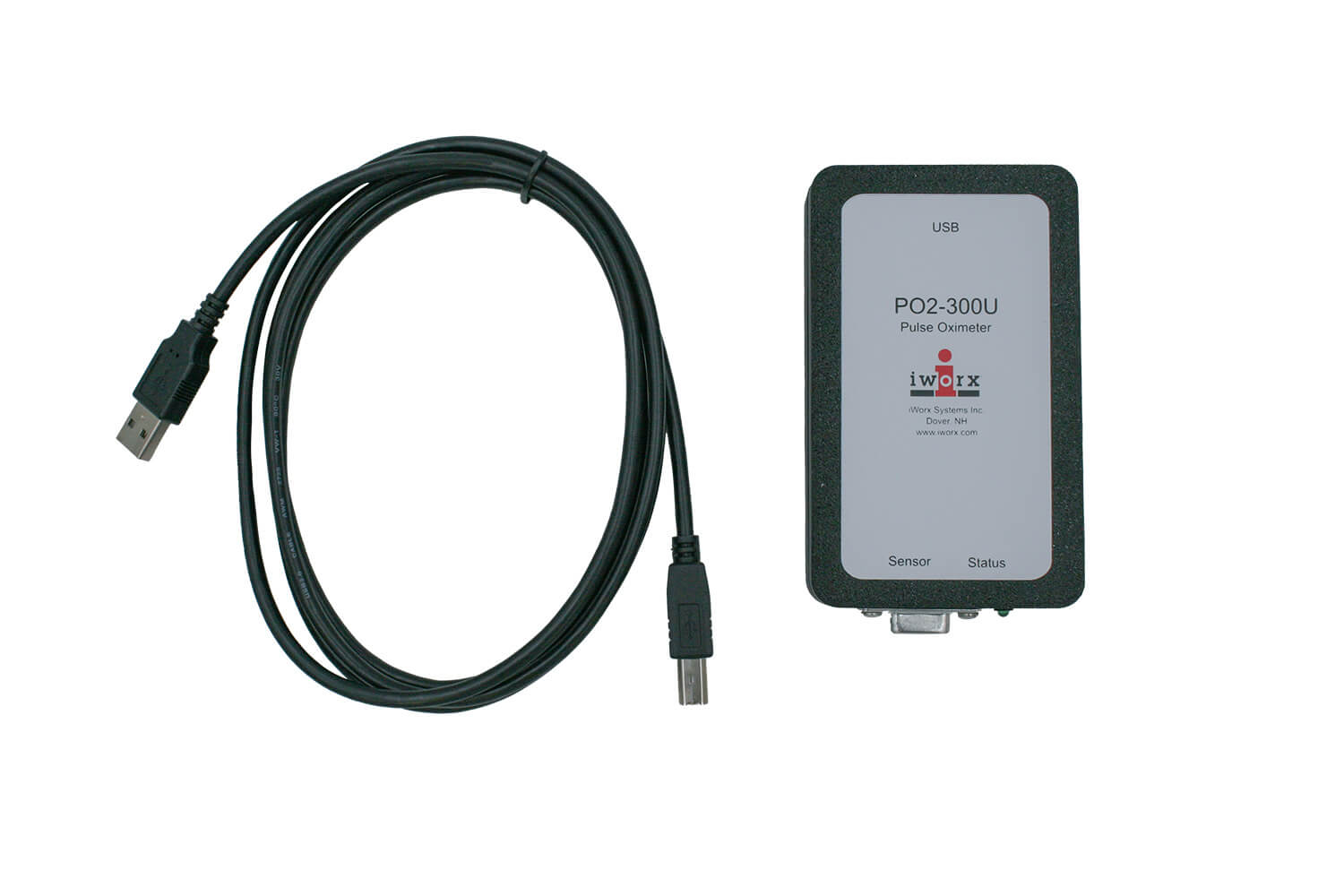

The USB ( PO2-300U) version comes with LabSribe software.
$1,095.00 – $1,750.00
| Specifications | |
|---|---|
| Oxygen Saturation Range | 0 to 100% |
| Pulse Rate Range | 18 to 450 pulses per minute |
| Measurement Wavelengths and Output | Red – 660 Nanometers @ 0.8 mW maximum average Infrared – 910 Nanometers @ 1.2 mW maximum average |
| SpO2 Accuracy (Arms*) | 70-100% 2% of full scale for adults using Nonin Finger Clip Sensor Below 70% not specified |
| Rate Accuracy | 3% or 1 digit |
| Temperature : Operating | 0° C to +50° C (32° F to +122° F) |
| Temperature :Non Operating | -20° C to +70° C (-4° F to +158° F) |
| Humidity | 10 to 90% Non-Condensing |
The smallest probe we offer; ideally suited for continuous monitoring. Can be placed on the underside of the animal, at the base of the tail, or on other well-perfused surfaces.
Flexible wrap sensor can be placed on a small, well-perfused appendage. Easily secured; ideal for continuous monitoring during long surgical or other procedures. Most often used on rodents or other very small animals.
Clip-on sensor for tongue or well-perfused areas, as appropriate. Custom designed grippers hold the application site without excessive pressure. Use in surgery and for monitoring during recovery while patient is immobile.
