Intracellular Probe (IC-200)

$395.00

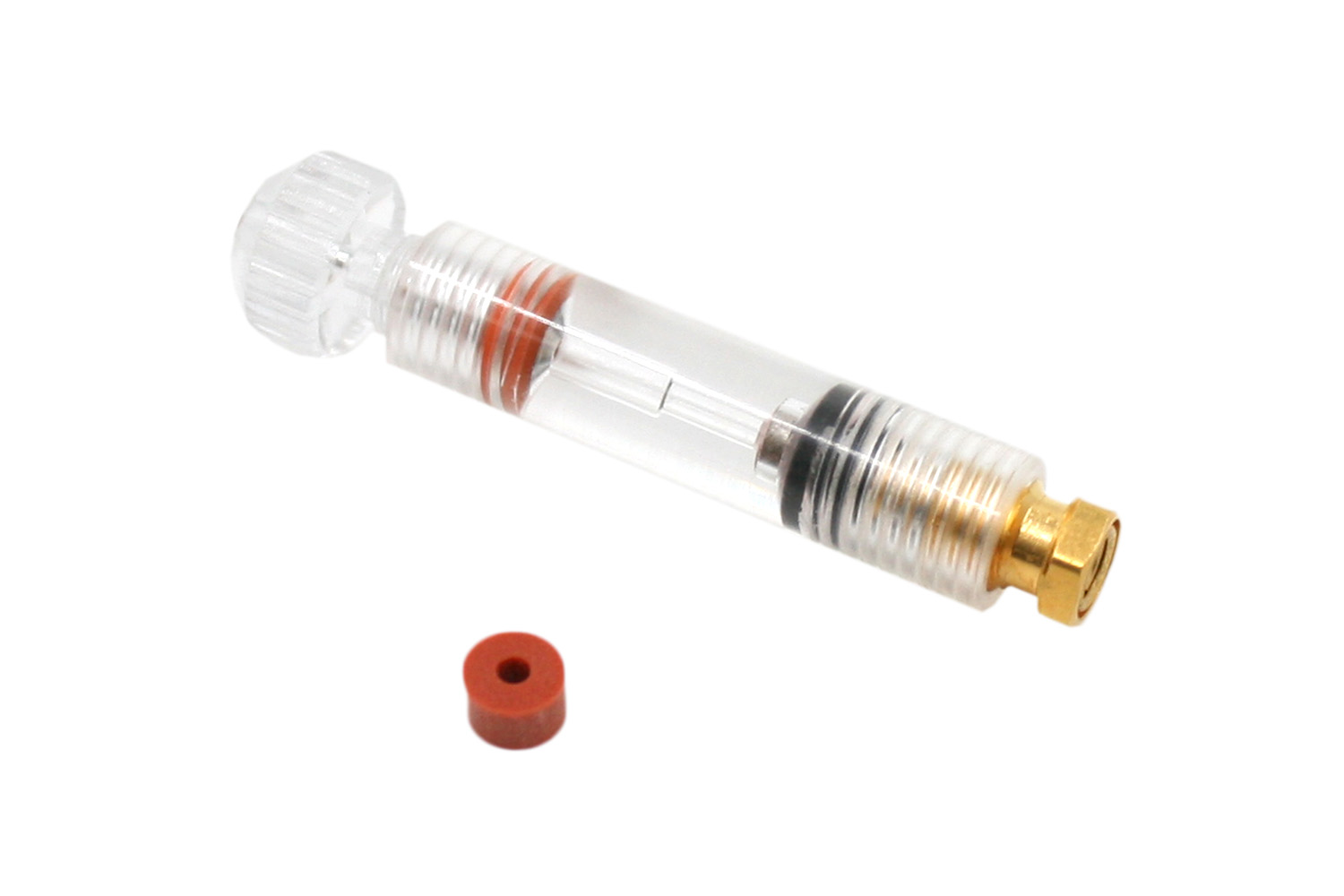

The IC-200 interfaces with any iWorx transducer amplifier or iWorx computer interface to measure resting and action potentials. Using the IC-200 with either of these devices allows the offset and filter settings to apply to the output of a high impedance probe. Each probe is supplied with a Ag/AgCl half cell/ micro electrode holder: A-GEH-IC-200
IC-200 Specifications
Input Impedance 100 GW
Input Capacitance ±1.5 pF
Noise Input Shortend 50 mV p-p (DC – 10 Khz)
Leakage Current 10 pA
Probe Gain Unity +/- 0.000
Power +/- 4 V
