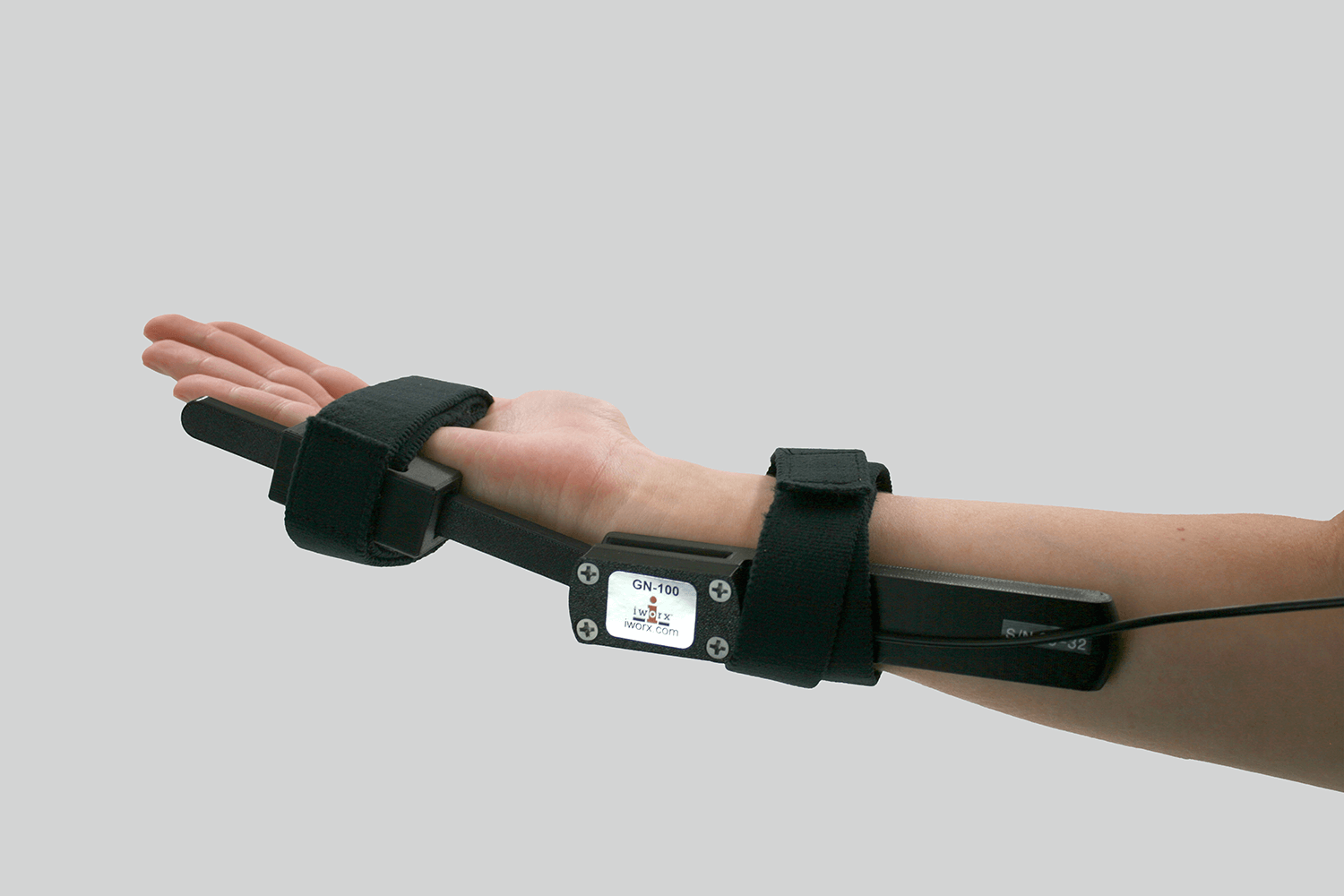

The Single-Axis Goniometer is a device that can easily measure the degrees of rotation around a joint. The goniometer is composed of a stationary arm that is mounted on the part of the body that does not move, a moveable arm that is attached to the body part on the side of the joint that moves, and a sensor that generates a voltage output that is proportional to the angle between the two arms of the Goniometer.
Price range: $435.00 through $475.00
The Single-Axis Goniometer is a device that can easily measure the degrees of rotation around a joint. The goniometer is composed of a stationary arm that is mounted on the part of the body that does not move, a moveable arm that is attached to the body part on the side of the joint that moves, and a sensor that generates a voltage output that is proportional to the angle between the two arms of the Goniometer.
Calibration: The GN-100/GN-200 is calibrated by setting the Goniometer arm at 90 deg and at 180 degrees. The GN-100 Calibration template can help setting the angles.
| Specifications | |
| Length of arm | 6 inches ( GN-100) 10 inches ( GN-200) |
| Range | 35 deg – 245 deg |
