Displacement Transducer ( DT-475 )


Manual: DT-475

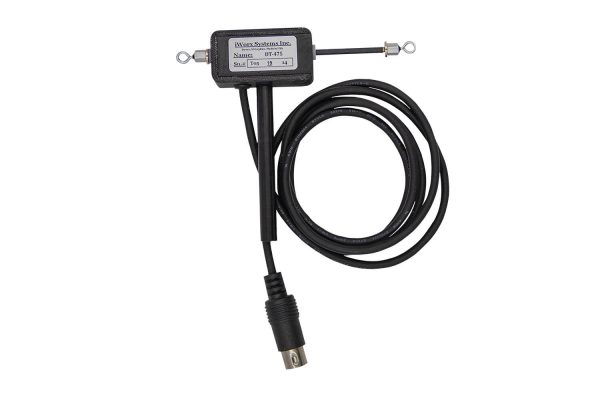

The DT-475 Displacement Transducer uses a freely moving magnetic rod to sense distance changes. The electronic components are sealed against moisture and corrosive salt solutions, so it is ideally suited for striated muscle studies in the student lab. Each end of the travel rod has a dead stop, allowing for attachment of weights to measure muscle contractions under load. The DT-475 requires a signal conditioner or an iWorx computer interface converter with a transducer input.
iWorx DT-475 Specifications
Displacement 2.5cm
Power ±4.0 V
Dimensions 2.5 cm x 5.75 cm x 12.25 cm
Part Number DT-475
