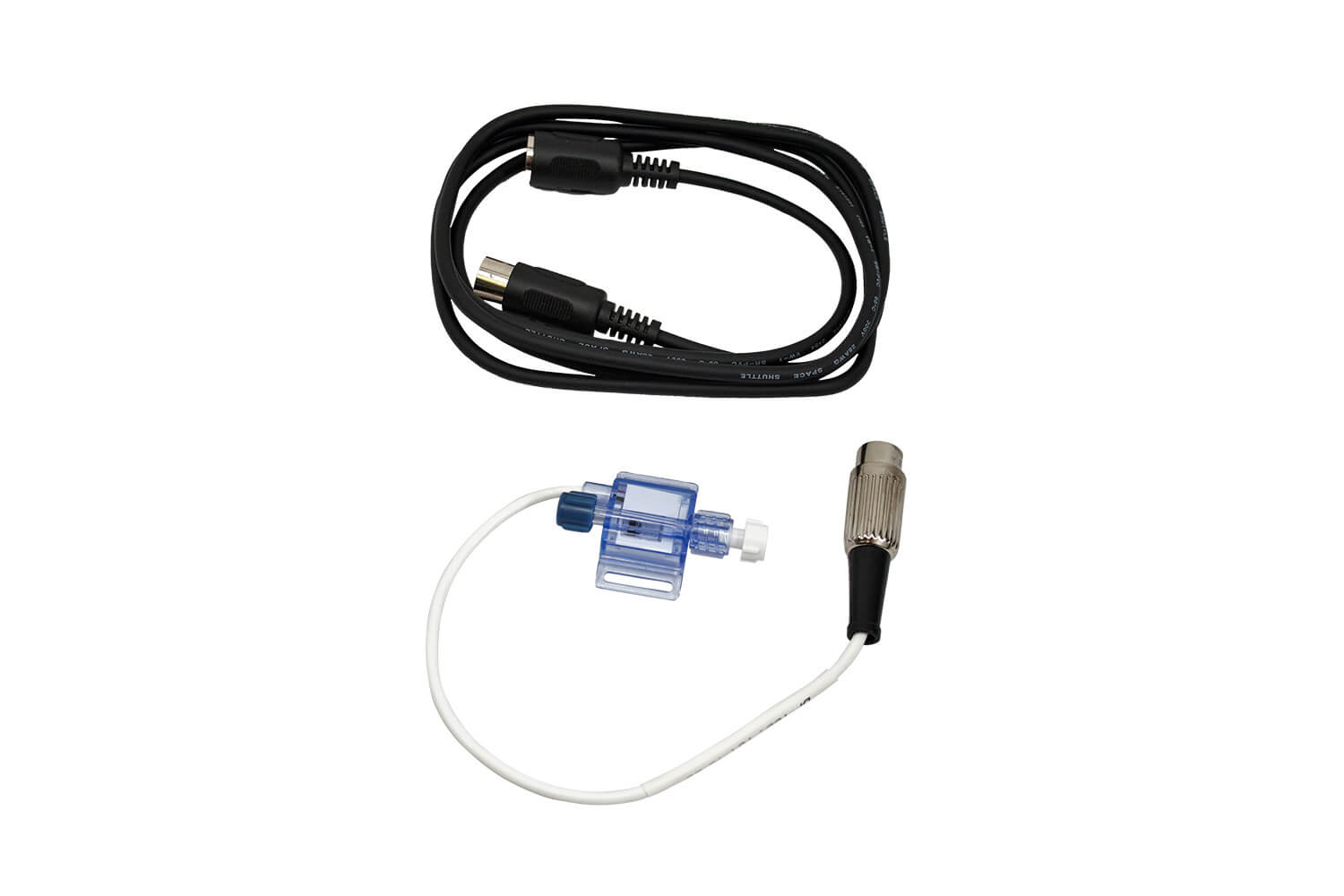

Invasive Fluid Filled Blood Pressure Sensor

The BP-100/BP-102 Blood Pressure Transducer can be used to measure direct arterial or venous pressure in animals.  A precision laser-trimmed chip provides accurate and linear measurements over a broad range.  The BP-100/BP-102 requires either a signal conditioner or an iWorx computer interface with a transducer input.

Optional integral 3cc flush device and stopcock available.

$225.00$265.00

Clear

The BP-100/102 Blood Pressure Transducer can be used to measure direct arterial or venous pressure in animals.  A precision laser-trimmed chip provides accurate and linear measurements over a broad range. Either a signal conditioner or an iWorx computer interface with a transducer input is required.

Accessories :

The BP-100/BP-102 has a gain resistor that presets the gain on iWorx amplifiers and recorders.

Specifications
Operating Pressure0 to +300 mmHg
Over Pressure-500 to +500 mmHg
Sensitivity5 µV/V/mmHg
Output with iWorx Amplifiers20mV/mmHg
Excitation Voltage+/- 5 VDC
Temperature Effect+0.25 mmHg/degrees C
Input Impedance270 ohms to 400 ohms
Output Impedance270 ohms to 400 ohms
Operating Temp.15° C to 40° C
