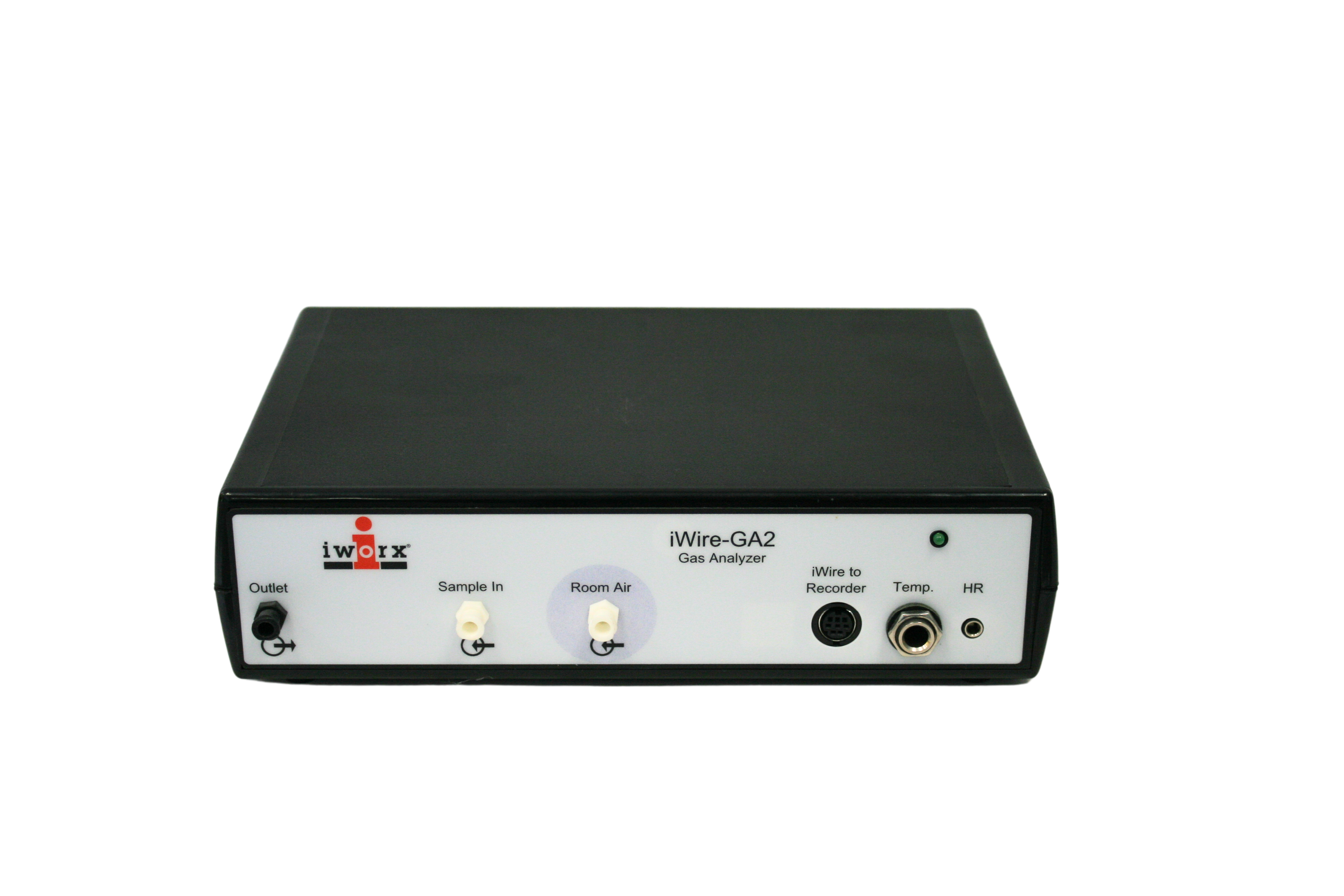

The iWire-GA2, Research Grade, CO2 and O2 Gas Analyzer is easy-to-use, robust and adaptable to human, animal and plant applications. The iWire-GA2 plugs in the iWire port on an iWorx Recorder for recording, display and analysis of O2 and CO2 signals. In addition, the iWire-GA2 incorporates an input for a Temperature Sensor (TM-220) and a Polar(R) Heart Rate Receiver (PHRM-100 ).
The iWire-GA2 is suitable for recording and measuring:
Specifications
| General | |
| sensors | O2, CO2,Temp, Barometric Pressure, HR |
| Temp | 10 – 50 deg C |
| HR | Polar Heart Rate |
| CO2 Sensor | |
| Range | 0-10% |
| Sense Method | NDIR |
| Linearity | < 0.1% CO2 |
| Repeatability | < 0.01% CO2 |
| Drift | < 0.1% in 1st 24 Hours, < 0.2% the following week. |
| Warm up | 5-8 minutes |
| O2 Sensor | |
| Range | 0-50 % |
| Sense Method | Paramagnetic |
| Linearity | < 0.2% O2 |
| Repeatability | < 0.2% O2 |
| Drift | < 0.4% in 1st 24 Hours, then <0.2% additional the following week, then < 0.2% additional per each following month. |
| Warm up | 1 minute |
TM-220: Measure temperature
Scosche ANT+ Heart Rate Monitor
Gas Analyzer Filters
4' Return Tygon Tubing with Leur Fittings (For use with iWire-GA1, iWire-GA2, GA-200 & GA-300 Gas analyzers)
Calibration Kit for Gas Analyzer
Gas Regulator
12% O2 and 5% CO2 Calibration Gas mixture
12V DC power supply
