A Pulsed Integrator For EMG Analysis

Based on:

Bak, M. and G. Loeb. “A pulsed integrator for EMG analysis.” Electroencephalography and clinical neurophysiology 47 6 (1979): 738-41 .

Use Absolute Integral and averaging to pulsed integration circuit which provides a voltage proportional to the area under the rectified EMG curve in discrete time windows.

1. Click on the EMG channel’s Add Function button,

2. Choose Integral, then Absolute.

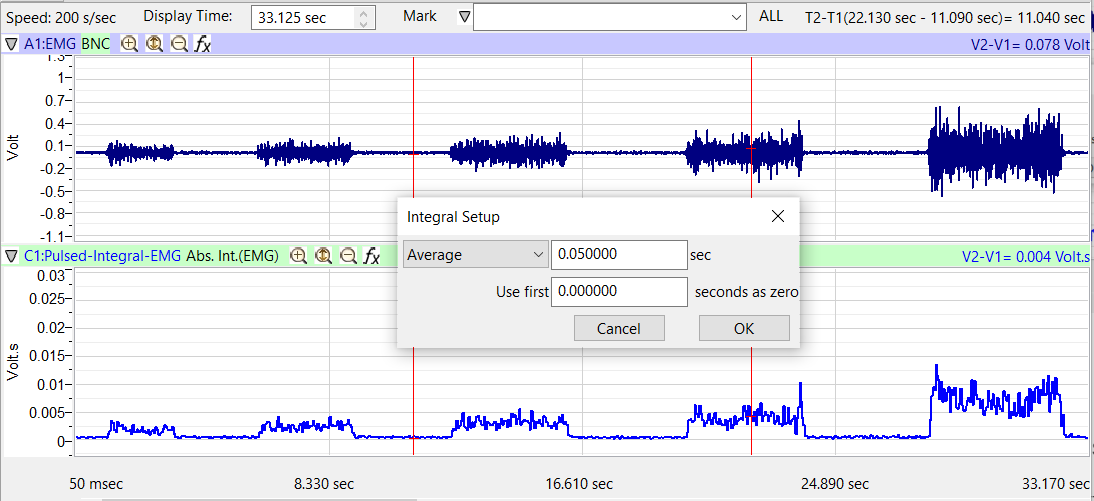

  • The Integral dialog setup Choose Average and the time typically 0.05 sec.

We now have a channel that is the Pulsed integral of the EMG signal.

Updated on May 25, 2021
